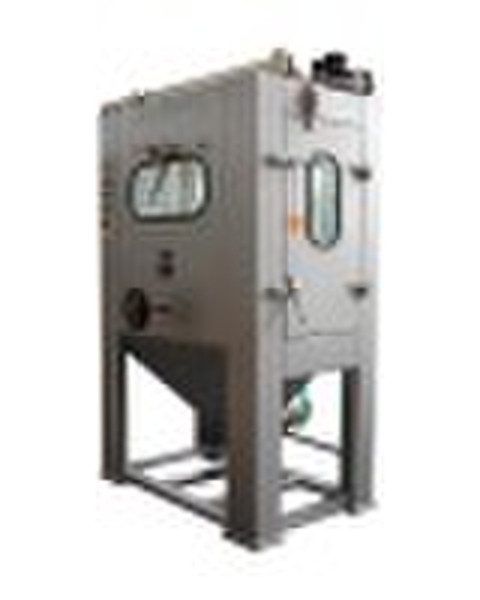

SS-0627 Car Lamp Checking Use Wet Sandblasting Mac
maggie liu
Contact person
Basic Information
Main technical data: 1. Space area of the machine:1300×800×2000mm 2. Electrical: Media pump motor:1.5kw,2840r/min,3N,50Hz,380v,IP44. Lighting: 3X20W fluorescent tube units,220V Control voltage: 220v Total power: No more than 2.5kw 3. Abrasive: Type: silica sand Grain size: 80# (00.2mm) Media Charge: 600kg 4. Turntable Size:400x300 mm Travel length: Vertical 200mm(Manual) 5. Blast Gun: Quantity: 1gun for manual Blast Nozzle Diameter: Φ3.2mm Air jet Diameter: Φ1.3mm Compressed air pressure: 0.60.65MPa 6.Working conditions: 1) Power supply:3N,50Hz,380v,about 2.5kw 2)Compressed air source: Air Pressure 0.7Mpa, Displacement 1M3/minNormal state air flow (20,101.325kPa)
Delivery terms and packaging
Packaging Detail: according to the customer's requirements Delivery Detail: 45days
Port: XINGANG,TIANJIN
