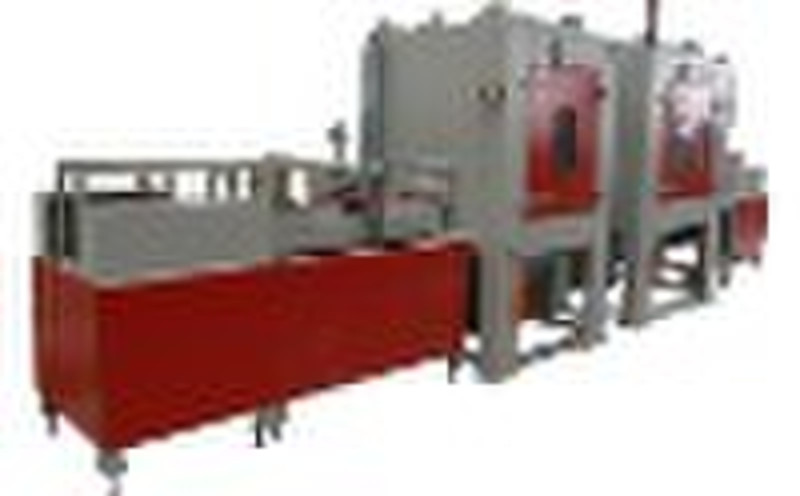

SS-094 Wet Sandblasting Machine

This sandblasting machine applies to processing for wet sand blast. Main technical data:1.Electrical device: Medium pump motor:11KW, 2840r/min,3N,50Hz,380V,IP44. Circulating water pump motor:4KW,2840r/min,3N,50Hz,380V,IP44. Lighting device: 2*20Wx2fluorescent lamp,220V. Driving motor:0.75KW x2,10r/min,3N,50Hz,380V,IP44 Heating fan:0.75KW x2,10r/min,3N,50Hz,380V,IP44 Heater: 4KW x2 50Hz, 380V,IP44 Dust blower : 2.2KW 1450r/min,3N,50hZ,380V,IP44 Control circuit voltage:24V2.Abrasive: Species: Aluminum oxide (recommended) or others alike.Grade: 46# 240#.Quantity in circulation: app. 2-3kg.3.Machining Range Width:3-50mm, height:3-254. Process gun:Quantity: 6 PQ1 guns Nozzle diameter:φ12mm. Air jet diameter:φ4mm. Air pressure (show on manometer when operating): 0.4 0.6Mpa. Air supply for single gun: app.0.7 1.4 m3. Total air consumption:app.0.8 1.5 M3/min Air supply pipe:φ 25mm(soft pipe) or G1''(hard pipe) Water supply pipe:φ13mm(soft pipe) or G1/2''(hard pipe) Floor space(L*W*H):6500*3500*2080mm. Weight: app.1200Kg
