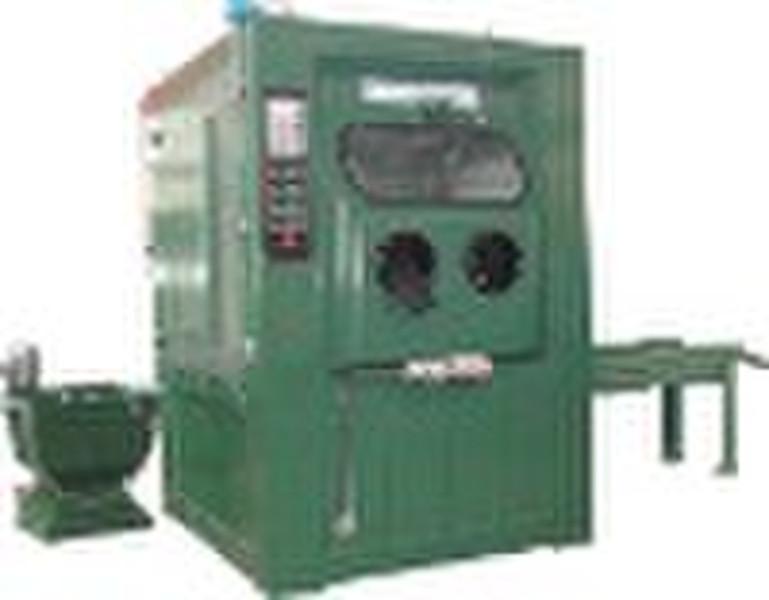

SS-10 Semi-automated Wet Sandblasting Machine

SS-10 Semi-Automatic Wet Sand Blasting Machine: The diameter of the working turntable is φ1240mm The quantity of work-pieces used to process for per batch: 10 The quantity ofblasting gun: 4 movingblasting guns and 1 hand-operatedblasting gun. Processing method: the work-pieces turn along with the working turntable and theblasting guns oscillate to sandblast to the work-pieces. Loading and unloading method: getting the working turntable out of the sand blasting cabinet, putting the work-pieces, and then pushing the working turntable into the cabinet to process the work-pieces. Technical Specification: Dimensions of the machine: 3270x3210x2520mm Total weight of the machine: 1500kg Pressure of compressed air: 0.5-0.7 Mpa Air consumption: 7.5m3/min Pipe size of outer connection of air supply: G1 Pipe size of outer connection of water supply: G1/2 Water Consuption:0.1m3/shift Power of Liquid abrasive pump: 11KW, 50Hz Lighting device: 3x20W 50Hz
