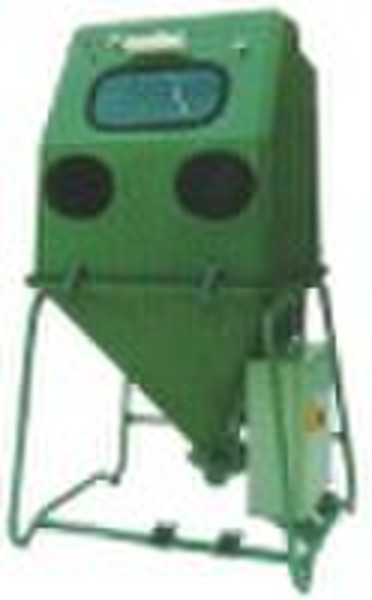

SS-2 Wet Sandblasting Machine

Range of Process: Suitable for wet blasting process. Suitable for medium-small size parts in small batches. Technical Specification: Dimensions of space floor: 1045x905x1564mm Electric apparatus: 1) Media pump motor: Ac380V-50HZ, 1.5KW, 2840rpm. 2) Lighting: AC220V-50HZ, 2x15W. 3) Voltage for control circuit: AC24V. 4) Total consumption: app. 1.6KW Sump volume: app.26L Media: 1) Media: Aluminum oxide (recommended) or others alike. 2) Grade: 46# 240#. 3) Quantity in circulation: app. 2-3kg. Turntable: 1) Diameter: φ500mm. 2) Load (uniformly distributed): Max50 Kg. Process gun: 1) Quantity: One set hand-held gun. 2) Media nozzle internal diameter: φ12mm. 3) Air jet internal diameter: φ6mm. 4) Air pressure (show on manometer when operating): 0.4 0.6Mpa. 5) Air supply for single gun: app.0.7 1.4 m3.p.m (depended on working pressure). Total air consumption: app.1 1.5 m3.p.m. (depended on working pressure). Air supply pipe: out-diameter φ13mm, same as internal diameter of hose. Water supply pipe: out-diameter φ13mm, same as internal diameter of hose. Weight with case: main unit app. 265Kg.
