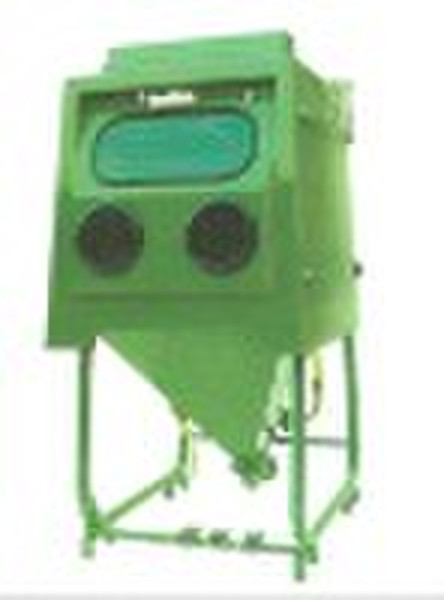

SS-3 Wet Sandblasting Machine

Application: The wet sand blasting machine is mainly used for cleaning oxide scale, oddment of salt and burrs on the components and also used for finishing various shape components. This unit processes the components by glass beads for producing hard surface. Main Feature: No dust discharging during processing, friendly environment and health-giving for operator. Technical Specification: Dimensions of space floor: 1000x1265x1965mm Electric apparatus: 1) Media pump motor: Ac380V, 50HZ, 1.5KW, 2840rpm. 2) Lighting: AC220V-50HZ, 2x15w. Media: 1) Media: Aluminum oxide (recommended) or others alike. 2) Grade: 46# 240#. 3) Quantity in circulation: app.2-3kg. Turntable: 1) Diameter: 500mm. 2) Load (uniformly distributed): Max 50 Kg. Process gun: 1) Quantity: One hand-held gun. 2) Media nozzle internal diameter: 9.5mm. Compressed air: 1) required pressure:0.4-0.6Mpa 2) Air consumption of this machine:1-1.5m3/min Air supply pipe: out-diameter is 13mm, same as internal diameter of hose. Water supply pipe: out-diameter is 13mm, same as internal diameter of hose. Weight with case: main unit app. 410Kg
