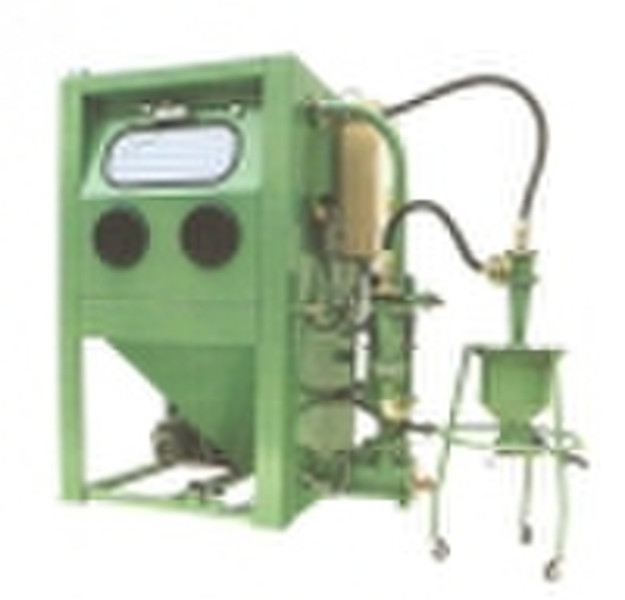

SS-8 Wet Sandblasting Machine with a Tumbling Box

Range of Process: Suitable for wet sandblasting process. Suitable for medium-small size parts in small batches. Technical Specification: Electric apparatus: 1) Media pump motor: Ac380V-50HZ, 4KW, 2840rpm. 2) Separator motor: Ac380V-50HZ, 0.4KW, 2840rpm. 3) Roller revolving driven motor: Ac380V-50HZ, 0.75KW. 4) Lighting: AC220V-50HZ, 2x20W. 5) Voltage for control circuit: AC24V. 6) Total consumption: app. 5KW Sump volume: app.110L Media: 1) Media: Aluminum oxide (recommended) or others alike. 2) Grade: 46# 180#. 3) Quantity in circulation: app.20kg. Turntable: 1) Diameter: φ500mm 2) Load (uniformly distributed): Max 50kg Roller: 1) Max diameter:φ500mm 2) Max loading weight:20Kg Process gun: 1) Quantity: One set hand-held gun. 2) Media nozzle internal diameter: φ12.5mm. 3) Air jet internal diameter: φ6.5mm. 4) Air pressure (show on manometer when operating): 0.5 0.7Mpa. 5) Air supply for single gun: app.1 1.5 m3.p.m (depended on working pressure). Total air consumption: app.1 1.5 m3.p.m. (depended on working pressure). Air supply pipe: out-diameter φ13mm, same as internal diameter of hose. Water supply pipe: out-diameter φ13mm, same as internal diameter of hose. Weight with case: main unit app. 650kg, accessories app. 210Kg.
